Product Description

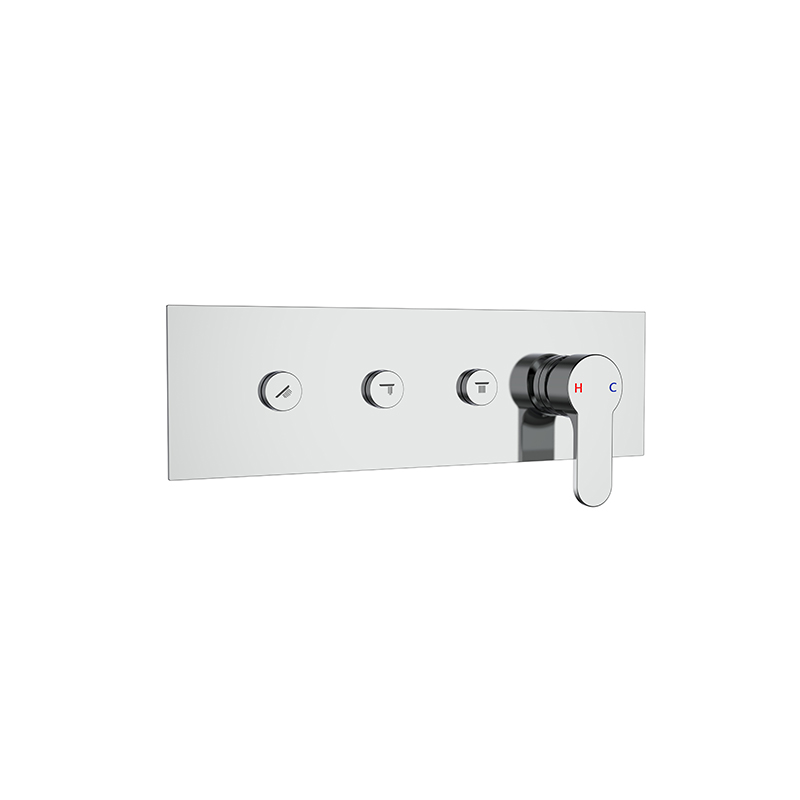

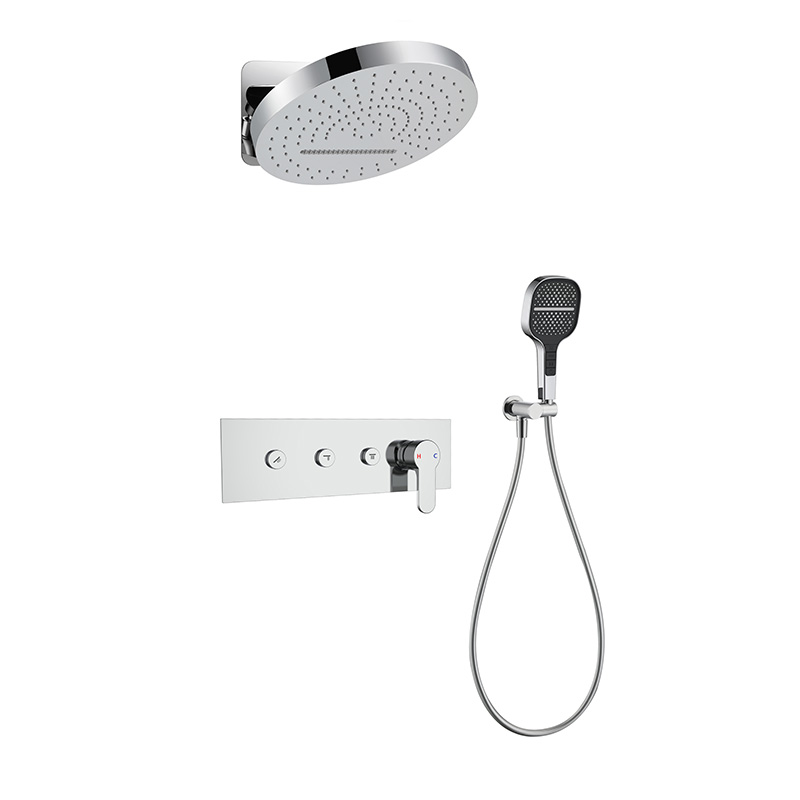

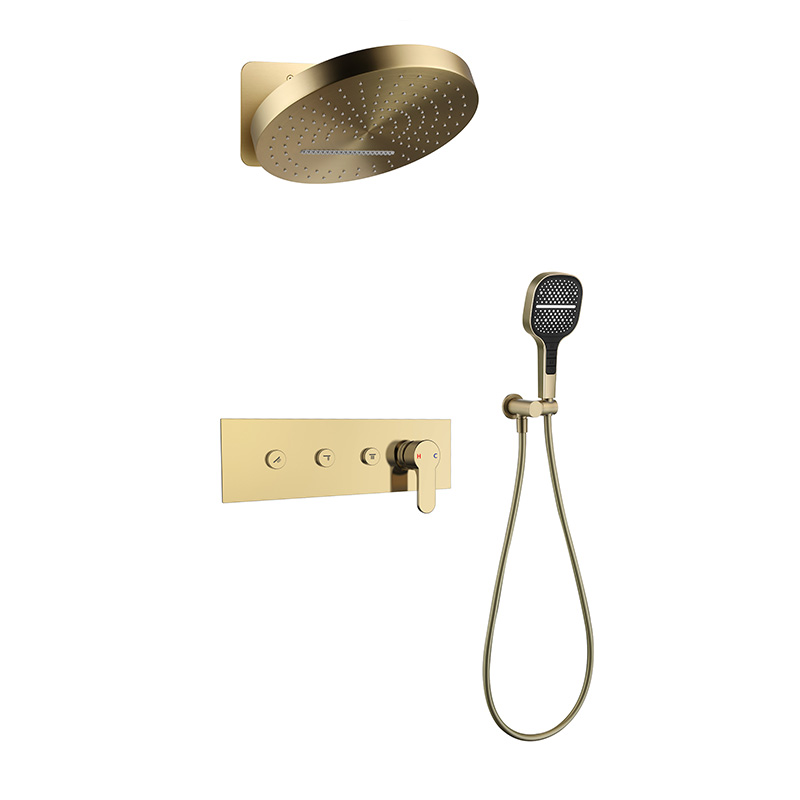

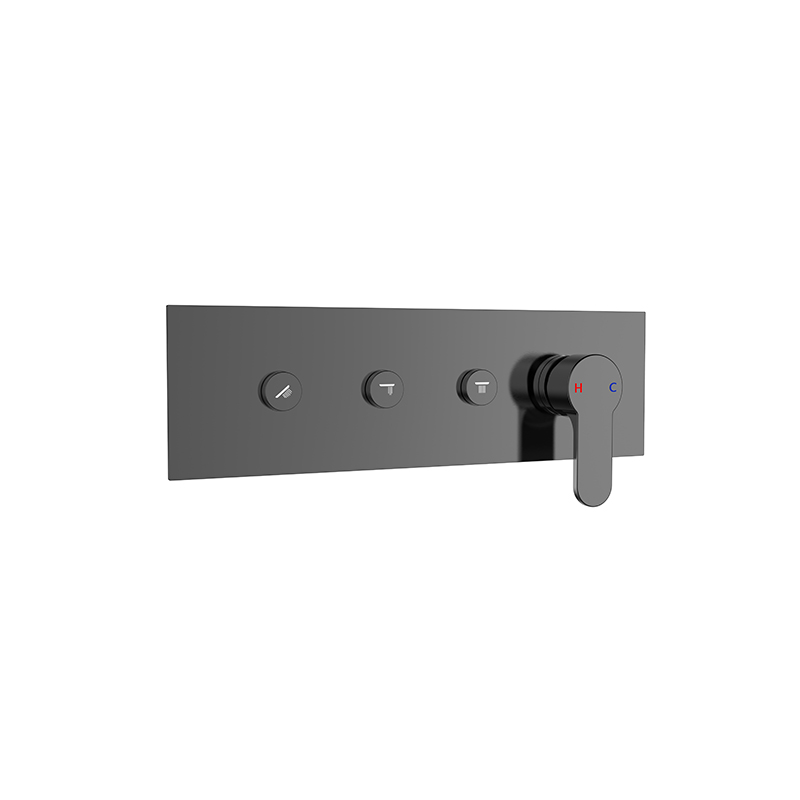

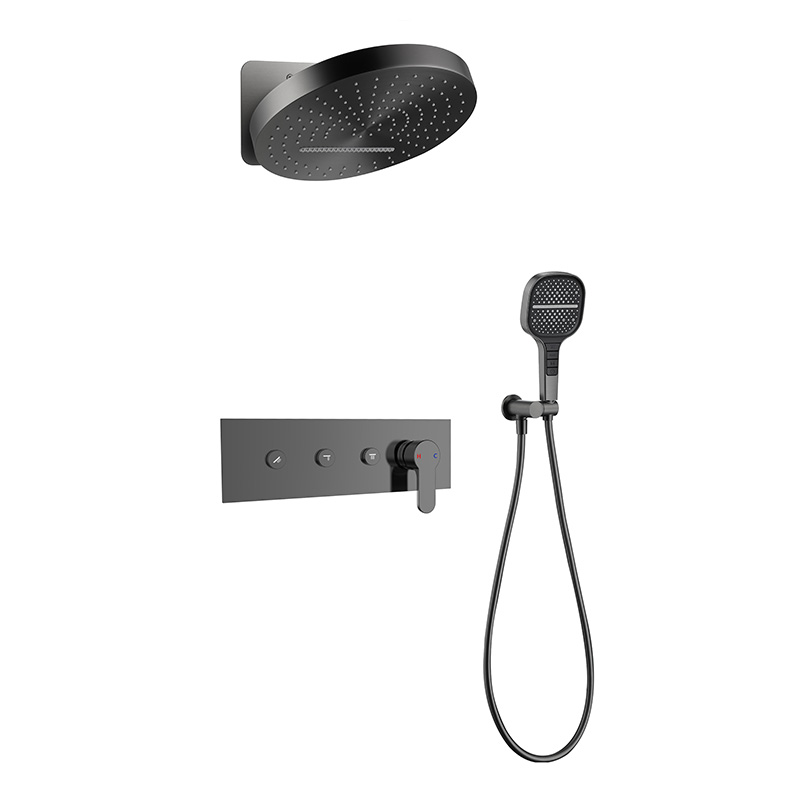

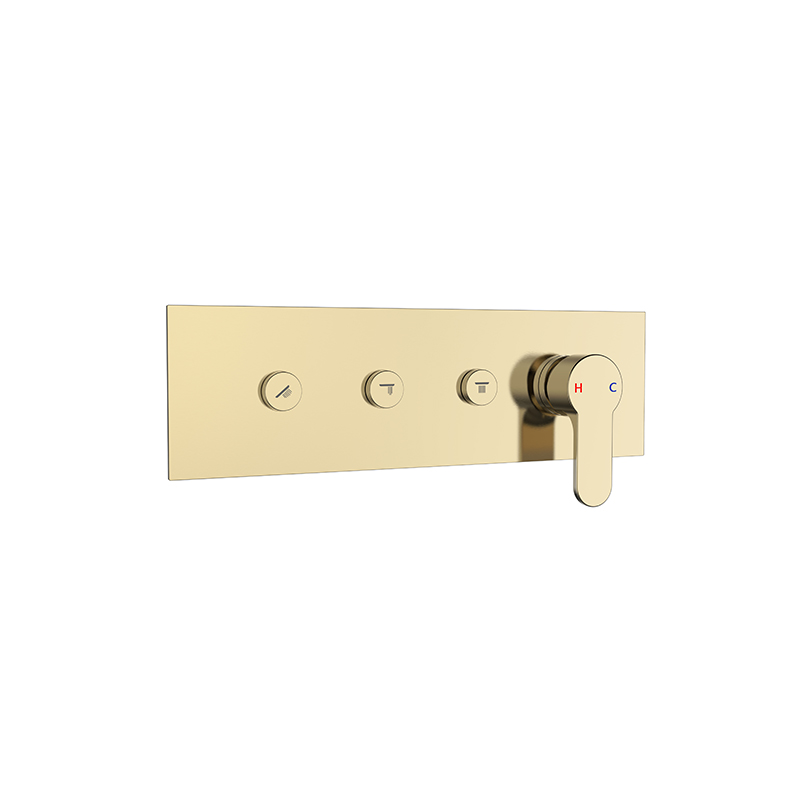

Concealed Shower Kits typically include a flush-mounted control panel, overhead showerhead, hand shower, and hose connection. They may also include a downspout or diverter outlet. These complete shower solutions conceal the main valve and water piping within the wall or a pre-installed box, leaving only the decorative panel and outlet components visible.
Concealed Shower Kit Features
Precise Temperature Control: Concealed Shower Kits are equipped with a highly responsive thermostatic valve cartridge and a mechanical temperature limiter. The adjustable temperature range is typically 20°C–60°C, with a temperature differential within ±1°C. In the event of uneven hot and cold water supply, the system compensates within 0.5 seconds and triggers the anti-scalding lock, ensuring a stable shower temperature for extended periods, significantly reducing the risk of scalding and enhancing user comfort. Wide-Band Spray: The overhead showerhead is available in 200mm, 250mm, 300mm, or 350mm diameters. The water outlets are optimized using fluid simulation to achieve uniform water coverage. The water flow rate ranges from 0.3–0.9 L/s per square meter. When combined with a handheld unit, it offers a variety of shower settings, from a gentle rain shower to a powerful rinse, to suit various bathing preferences.
Corrosion-Resistant Materials: The panel and exposed components are made of 304 stainless steel or CW617N copper. The concealed valve body is treated with multi-layer coating or PVD. Key components are made of lead-free alloy. The valve body wall thickness is typically ≥1.2mm. It has been tested for over 72 hours in salt spray testing, making it suitable for harsh environments like coastal areas and high humidity, extending its service life and reducing maintenance frequency. Water-saving and efficient: Concealed Shower Kits feature built-in adjustable flow limiters and water balancers, allowing for separate flow limits for the overhead shower and handheld showerhead. In energy-saving mode, the entire system maintains total water consumption within a range of 7–10 L/min. A booster port design maintains ample water flow, balancing environmental protection and user experience.
Low-pressure compatibility: Designed to accommodate a wide operating pressure range, the kit includes a pressure-stabilizing chamber or booster module, ensuring stable startup and uniform spraying even under low-pressure water supply conditions. This reduces the need for modifications to existing building pipe networks, making it convenient for retrofitting existing buildings and applications in decentralized water supply environments.
Modular maintenance: Concealed Shower Kits utilize quick-release panels and replaceable valve cartridge modules. The concealed valve body and control module can be inspected or replaced without damaging the wall. Multiple installation depths, combined with quick-connect connectors and standardized accessories, significantly reduce on-site installation and after-sales maintenance time. Anti-scaling and Easy-to-Clean: Both overhead and hand showers utilize silicone/elastic nozzles or removable filters. Daily scale removal requires only rubbing or cleaning. The nozzle's anti-clogging design reduces cleaning frequency. The surface treatment enhances stain resistance, ensuring easy restoration after long-term use, making it suitable for hotels and other high-use environments.
Concealed Shower Kit Applications
High-end Residences and Villas: Concealed Shower Kits are designed for private residences seeking minimalist or customized interiors. Their concealed design preserves the integrity of the wall, and their three-function configuration caters to both daily bathing and relaxation. They easily integrate with floor heating or a separate hot water system, minimizing visible plumbing and visual impact.
Star-rated Hotel Rooms and Suites: As a standard feature enhancing the guestroom bathing experience, constant temperature and pressure stabilization ensure stable performance despite varying guest flow and water supply fluctuations. Modular maintenance reduces room downtime, supporting a unified hotel style and batch replacement of accessories. Model Apartments and Finished Home Delivery: Concealed Shower Kits serve as visual and functional selling points in model apartments or finished home delivery, helping developers enhance presentation and customer engagement. Supply chains can customize panel colors and handle styles to match the model theme.
Spas and High-End Fitness Clubs: Concealed Shower Kits are ideal for experiential spa rooms and private bathroom shower areas. The rain showerhead provides a relaxing experience, while the handheld unit is used for rinsing or therapeutic treatments. Their durability and easy cleanability reduce operational maintenance burdens, facilitating long-term commercial operations.
Medical Rehabilitation and Elderly Care Facilities: In rehabilitation rooms and retirement homes, where safety and ease of use are paramount, constant temperature protection and easy switching functions reduce nursing risks. Concealed installation eliminates tripping and blind spots, facilitating barrier-free renovations and disinfection processes.
Projects and Distribution: Concealed Shower Kits are suitable for building finishes, model project packages, and regional distribution channels. They support OEM and bulk supply, and come with supporting technical documentation for project-based procurement and ongoing maintenance management.
