Shower Faucet Pressure Balancing Valve

A shower faucet with a pressure balancing valve is designed to regulate water temperature by compensating for changes in hot and cold supply pressure. The system provides a controlled and stable showering environment by maintaining the mix ratio between hot water and cold water even when pressure fluctuates. When installed, users experience consistent water temperature that prevents sudden changes caused by toilet flushing, appliances running, or variable household demand. The design enhances shower comfort and adds a layer of protection for households, hotels, and multi-unit facilities where pressure differences occur regularly. Its structure integrates a robust brass valve body, a calibrated mixing mechanism, and a streamlined exterior trim that fits modern bathrooms and supports stable long-term use with minimal maintenance.

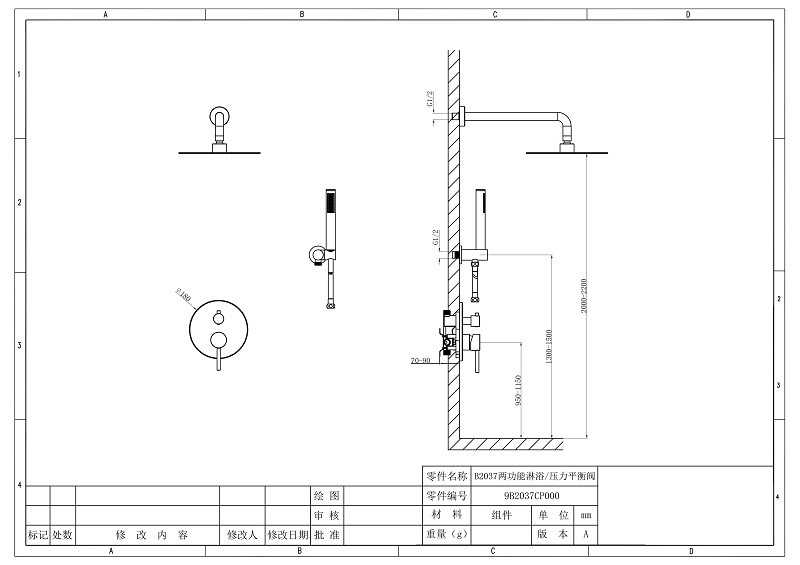

Shower Faucet Pressure Balancing Valve Parameter

Shower Faucet Pressure Balancing Valve Features

1. Pressure Stability –

The balancing mechanism maintains temperature within a deviation range of two degrees Celsius during pressure drops and spikes. During laboratory testing at a simulated pressure shift of one hundred kilopascals between hot and cold lines, the internal spool automatically adjusts flow to correct imbalance. This system avoids thermal discomfort and ensures water remains within a safe temperature window. The consistent output supports uninterrupted showering regardless of upstream supply changes. The mechanism operates through calibrated spring tension and channel geometry, delivering controlled performance without requiring electrical sensors, which improves reliability. Long-term cycling tests exceeding one hundred thousand actuations verify its stability under repeated pressure disturbances, confirming its suitability for residential and commercial environments requiring predictable mixing output.

2. Certified Cartridge –

The balancing cartridge meets UPC requirements for mechanical performance and temperature regulation accuracy. The cartridge uses a dual-chamber design that monitors pressure input from both supply sides and modulates internal piston movement to maintain flow symmetry. During compliance testing at seventy-five pounds per square inch inlet pressure, temperature drift remained below mandated thresholds, confirming regulatory conformity. The seals are developed from high-tensile elastomers measured at seventy Shore A hardness to prevent deformation under thermal expansion. These components resist abrasion during extended operation and ensure persistent sealing efficiency. The cartridge maintains operational precision after endurance testing under water temperatures ranging from four to ninety degrees Celsius, demonstrating dependable control in diverse installation environments.

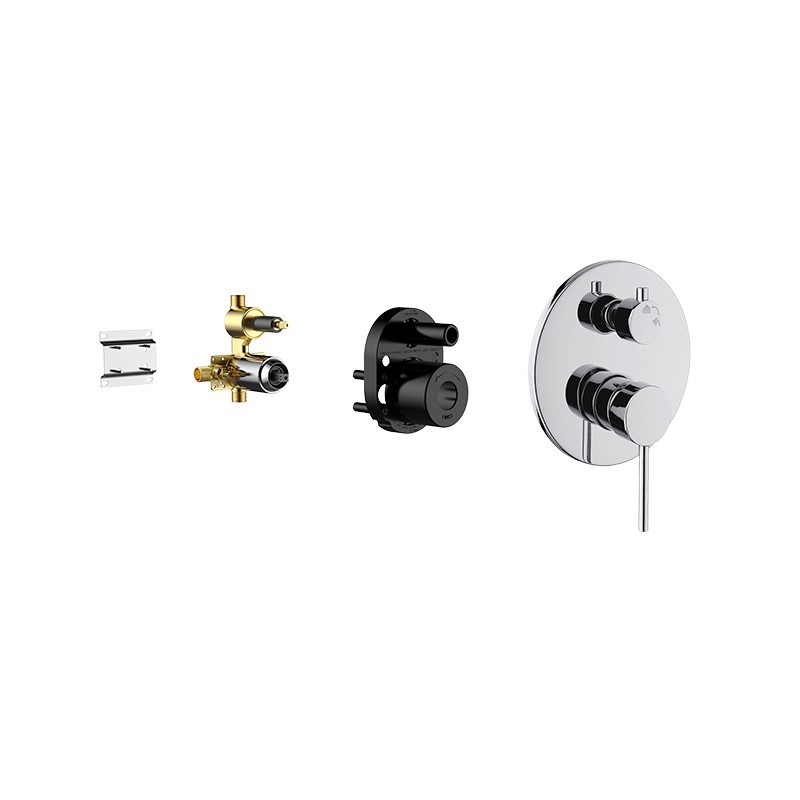

3. Durable Valve Body –

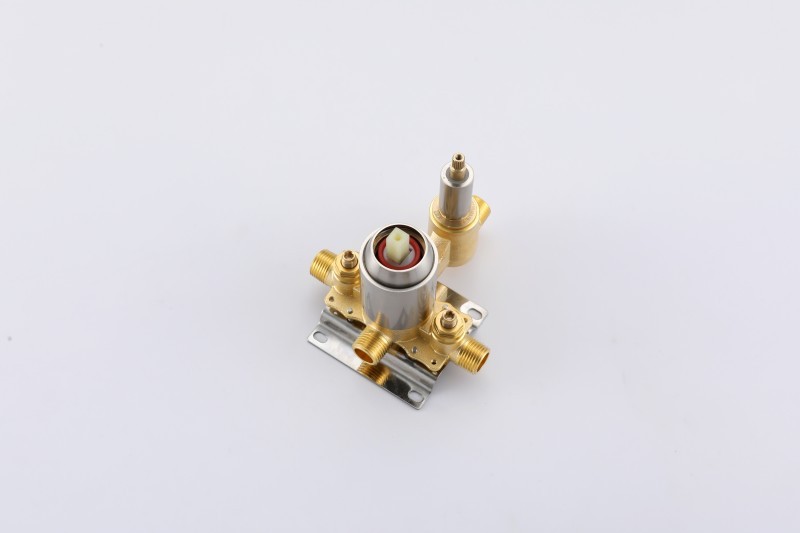

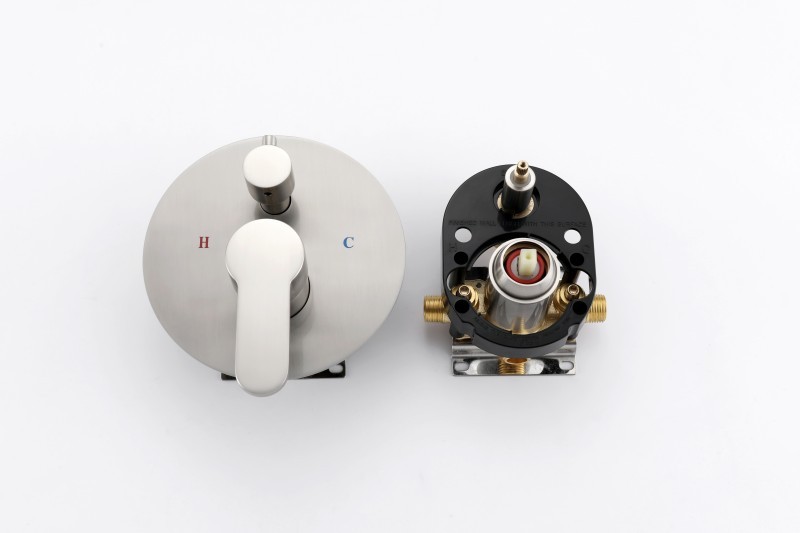

The valve body is manufactured from cast brass with a copper content exceeding sixty percent, providing corrosion resistance and mechanical integrity. Tensile strength values above two hundred megapascals allow the body to support threaded connections without risk of cracking during installation. Internal passageways are machined to minimize turbulence and keep flow rates stable at standard household pressures. The surface treatment reaches a minimum thickness of eight micrometers to reduce oxidation. Threaded inlets and outlets conform to NPT dimensional requirements with a tolerance of plus or minus zero point one millimeters for secure fittings. Bench pressure testing at two hundred psi confirms leak-free performance, ensuring long service life in concealed wall installations.

4. High-Performance Trim –

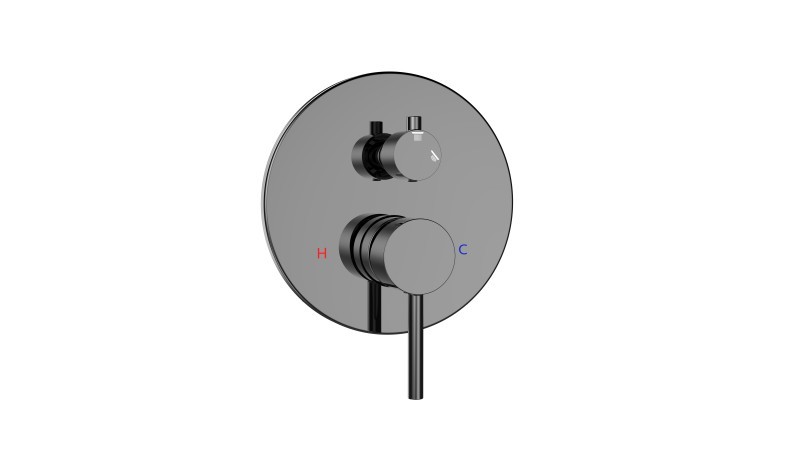

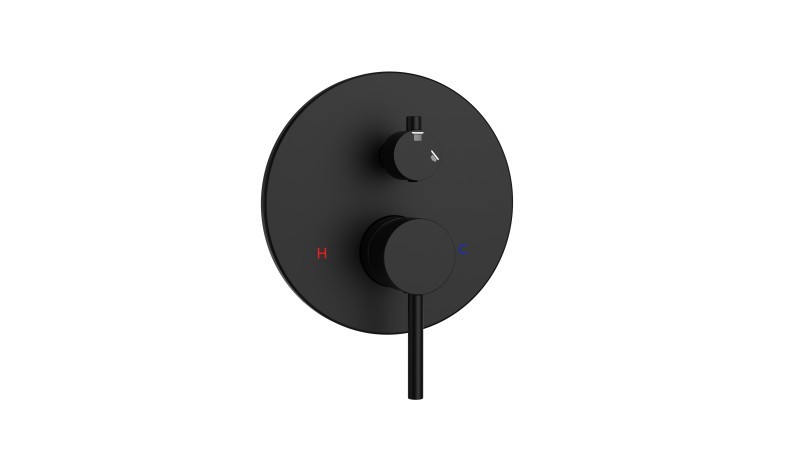

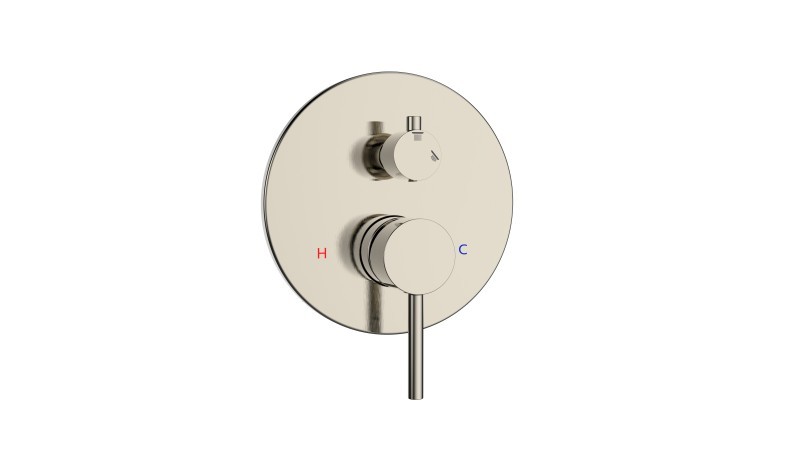

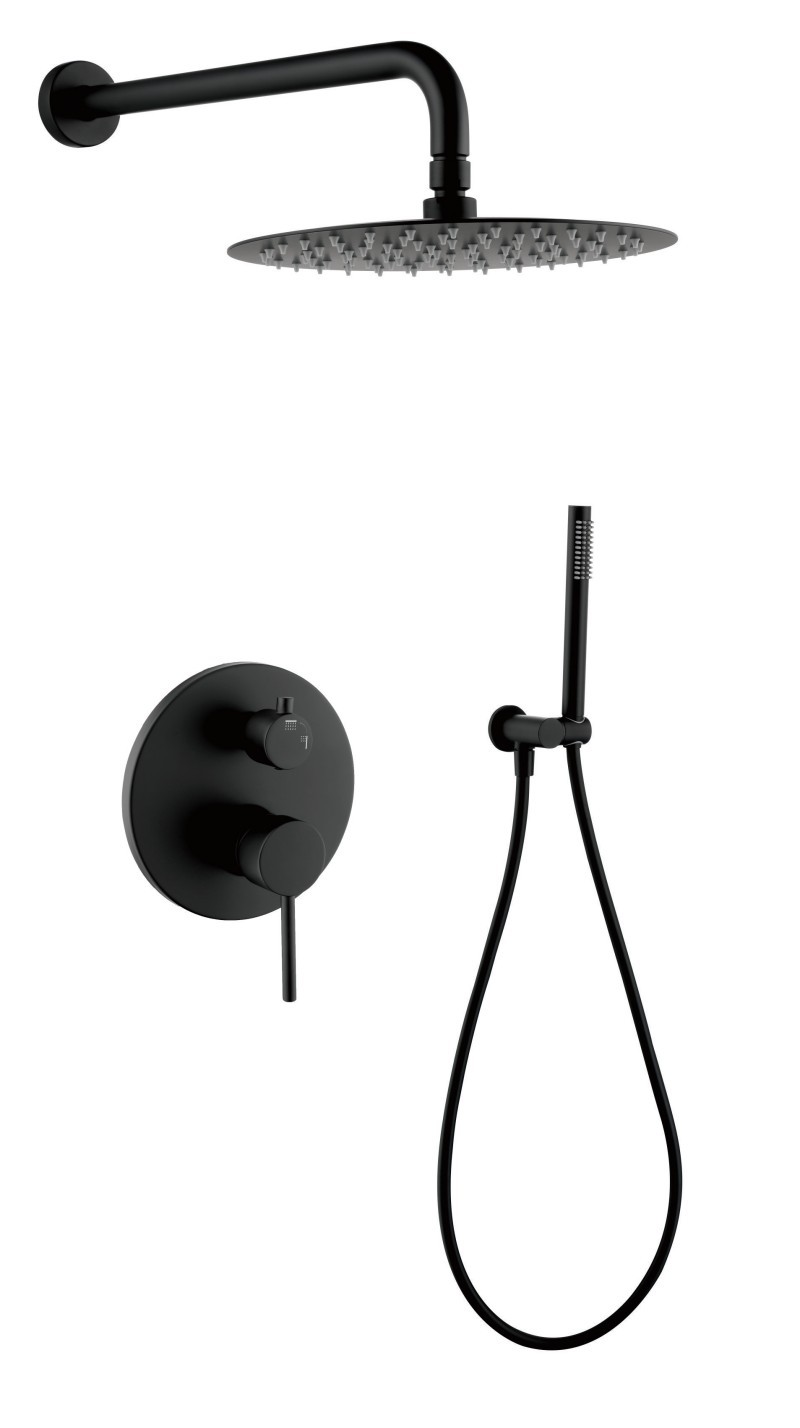

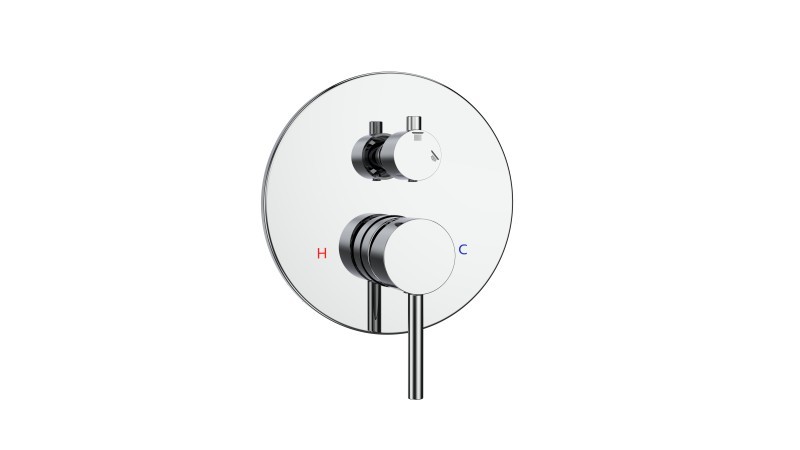

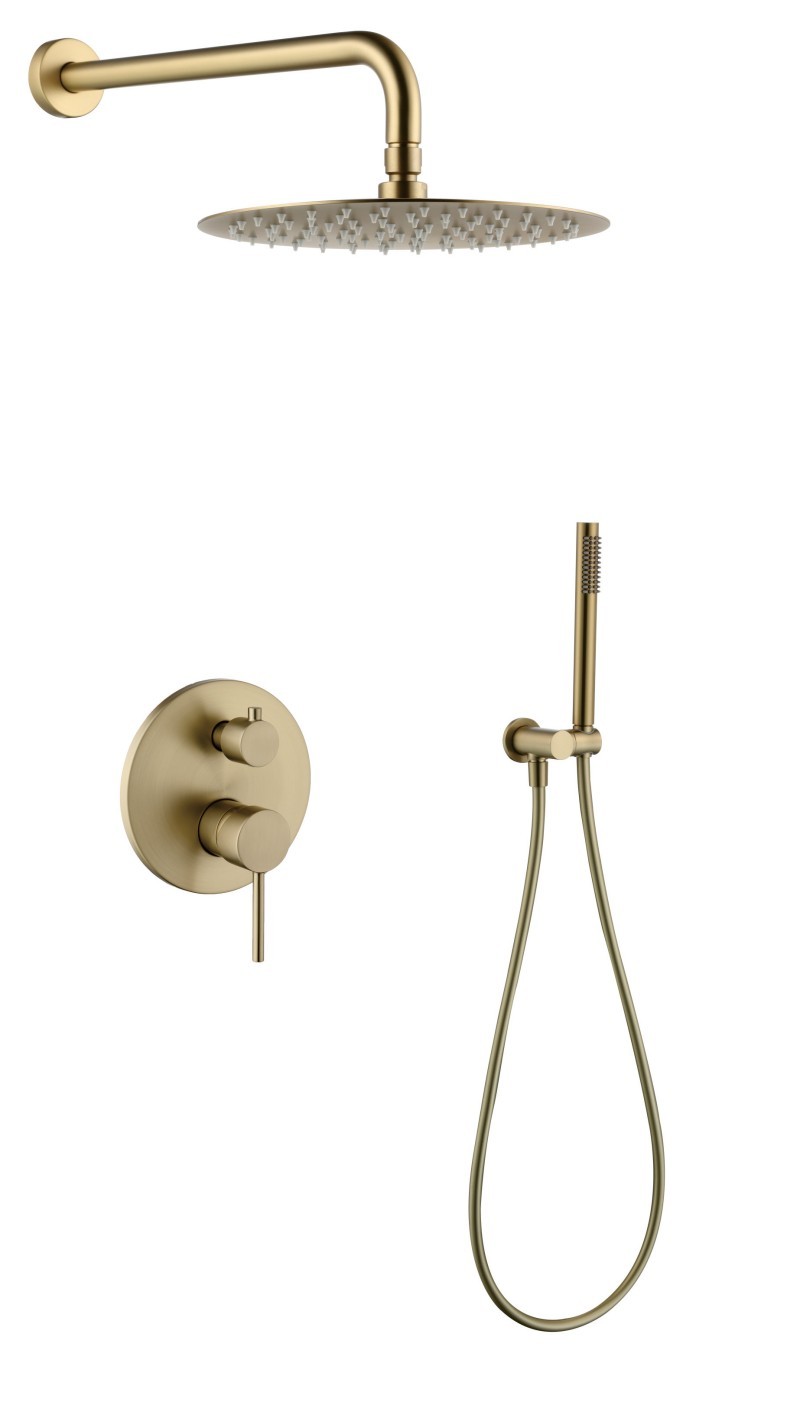

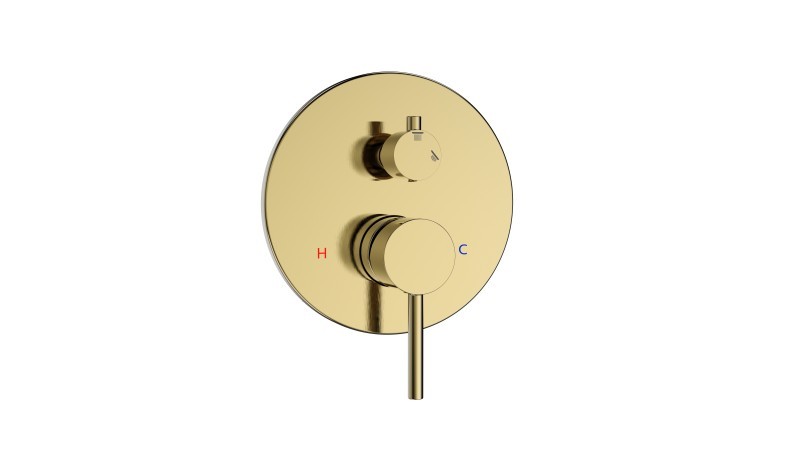

The trim assembly includes a zinc alloy handle and a faceplate with dimensions verified to a tolerance of plus or minus zero point two millimeters, ensuring accurate alignment with the valve’s operational shaft. The handle rotation is calibrated between ninety and one hundred twenty degrees to provide controlled temperature adjustment. Surface finishes such as matte black, brushed nickel, chrome, and brushed gold undergo salt spray testing for over seventy-two hours to confirm resistance to corrosion in humid bathroom environments. The faceplate’s reinforced construction minimizes flexing under installation stress. Repeated torque tests on the handle demonstrate stability under daily operational force, maintaining precise movement of the pressure balancing cartridge.

5. Flow Efficiency –

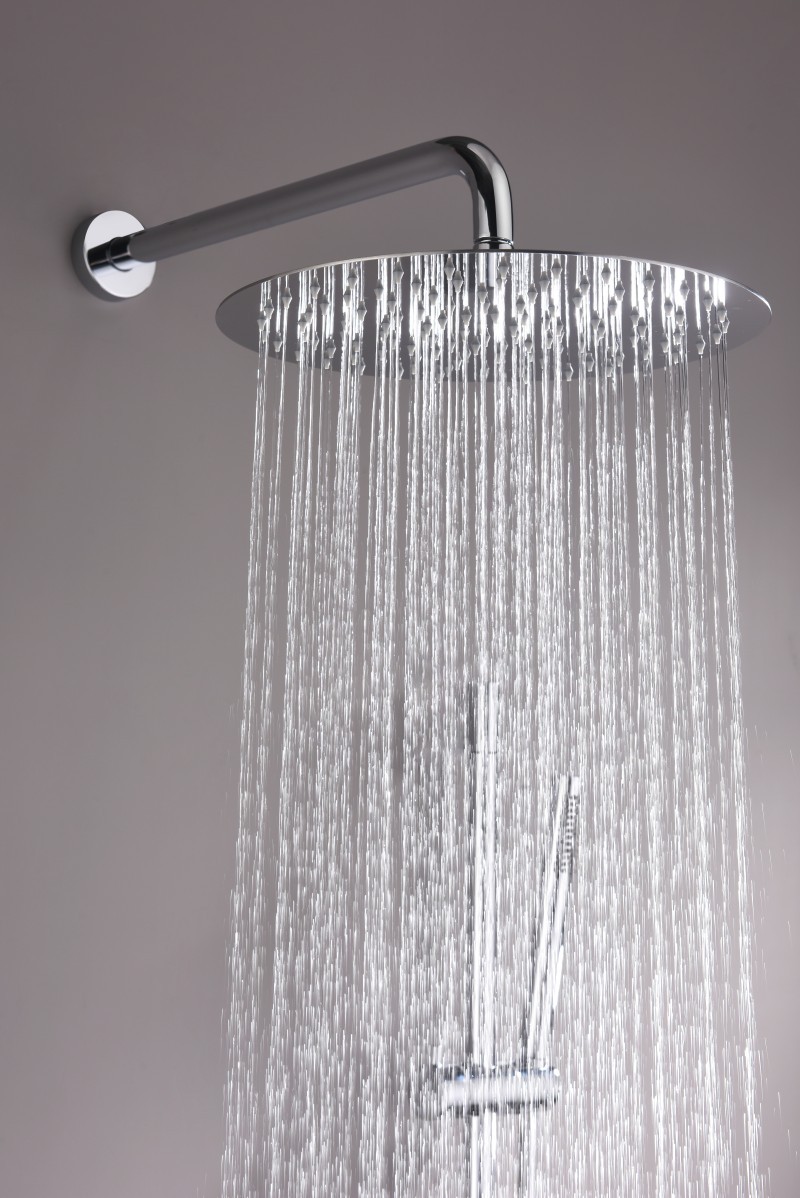

The valve supports balanced delivery with a typical flow rate of nine to twelve liters per minute at sixty psi, ensuring adequate water volume for showerheads and tub spouts. Internal channels are designed to maintain laminar flow, reducing noise levels to below thirty-five decibels during operation. Flow paths were analyzed through computational modeling to minimize pressure loss across the cartridge assembly. The mixing performance remains consistent even when inlet pressure fluctuates by up to fifty percent, maintaining regulated output. Performance benchmarking against industry standards confirms the valve’s capability to deliver uniform water distribution suitable for large showerheads or combined installations including hand showers and tub outputs.

Wall Mount Lavatory Faucet Application

1. Residential Bathrooms –

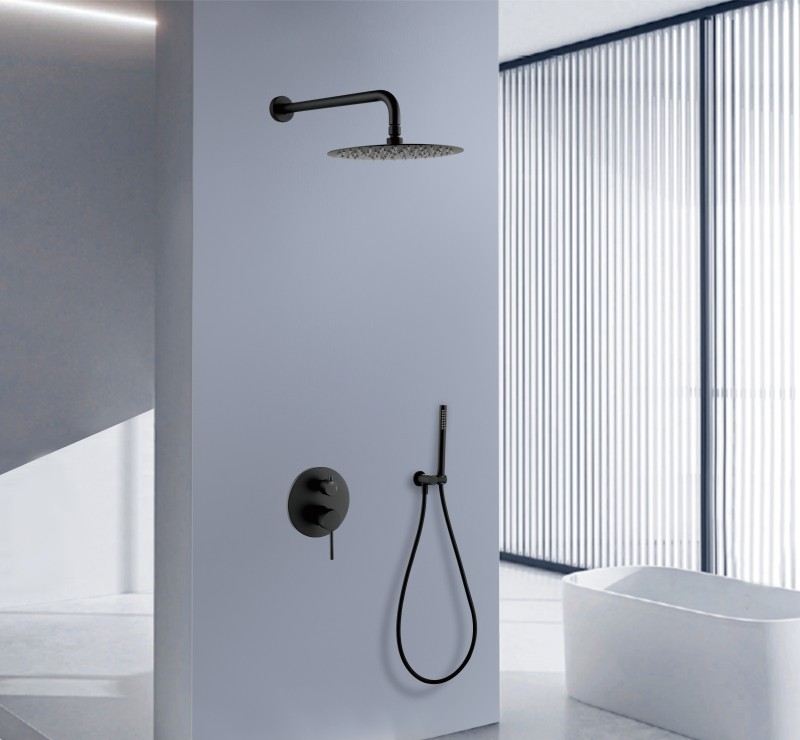

Homes benefit from stable temperature control during simultaneous water usage, such as washing machines or toilets operating while someone is showering. The pressure balancing valve prevents sudden temperature spikes, enhancing safety for children and elderly users. Installation in single-family homes or apartments ensures consistent showering comfort across varying local supply conditions. The system maintains reliability despite varying municipal pressures and allows homeowners to integrate multiple showering components without compromising temperature regulation.

2. Hotels and Resorts –

Hotels require consistent water performance across multiple rooms operating simultaneously. The valve stabilizes shower temperature even when dozens of fixtures draw from shared plumbing. This reduces customer complaints and ensures uniform experience. The durable brass valve construction withstands continuous usage common in commercial hospitality environments. Maintenance teams benefit from long lifecycle performance and reduced need for cartridge replacement, keeping operational costs manageable.

3. Multi-Unit Residential Buildings –

Apartment towers and condominiums often experience rapid fluctuations in plumbing pressure due to stacked vertical systems. The valve maintains output stability in conditions where pressure variation is unavoidable. Residents experience reliable temperature regardless of neighbors’ water use. This contributes to safety and comfort in densely occupied buildings. The mechanical balancing system operates efficiently in high-demand water networks where simultaneous usage is frequent.

4. Healthcare Facilities –

Hospitals and clinics require controlled water temperatures to safeguard vulnerable patients. The pressure balancing valve reduces the risk of thermal shock during bathing or cleaning procedures. It maintains predictable water delivery when multiple medical stations use water concurrently. The robust, easy-to-clean trim design also supports hygiene requirements. Performance consistency under heavy usage reduces operational disruptions and supports compliance with facility safety standards.

5. Commercial Gyms –

Fitness centers have peak usage periods when many showers operate at once. The valve stabilizes temperature to prevent discomfort for athletes. Its steady flow capability supports large showerheads often used in premium gym facilities. The durable construction withstands frequent daily use, and the smooth operation of the handle provides intuitive control for rotating users. Reliability during heavy cycles reduces need for maintenance downtime.

6. Student Housing –

Dormitory buildings experience highly variable water demand within short time intervals. The valve compensates for sudden pressure drops during peak shower hours. Students receive stable temperature output even when multiple fixtures activate concurrently. Its construction supports long-term installation in high-traffic environments. The consistent water supply improves user satisfaction and reduces facility maintenance intervention caused by fluctuating shower performance.

7. Renovation Projects –

Pressure balancing valves are ideal for upgrading older homes with inconsistent plumbing. They allow integration with existing supply lines while immediately enhancing temperature stability. The compact design fits standard wall cavities used in remodeling. Renovators can pair the valve with modern showerhead systems for improved performance without extensive infrastructure modification. This adds value to property upgrades by ensuring safer and more reliable bathing environments.

More Details about Shower Faucet Pressure Balancing Valve
