Product Description

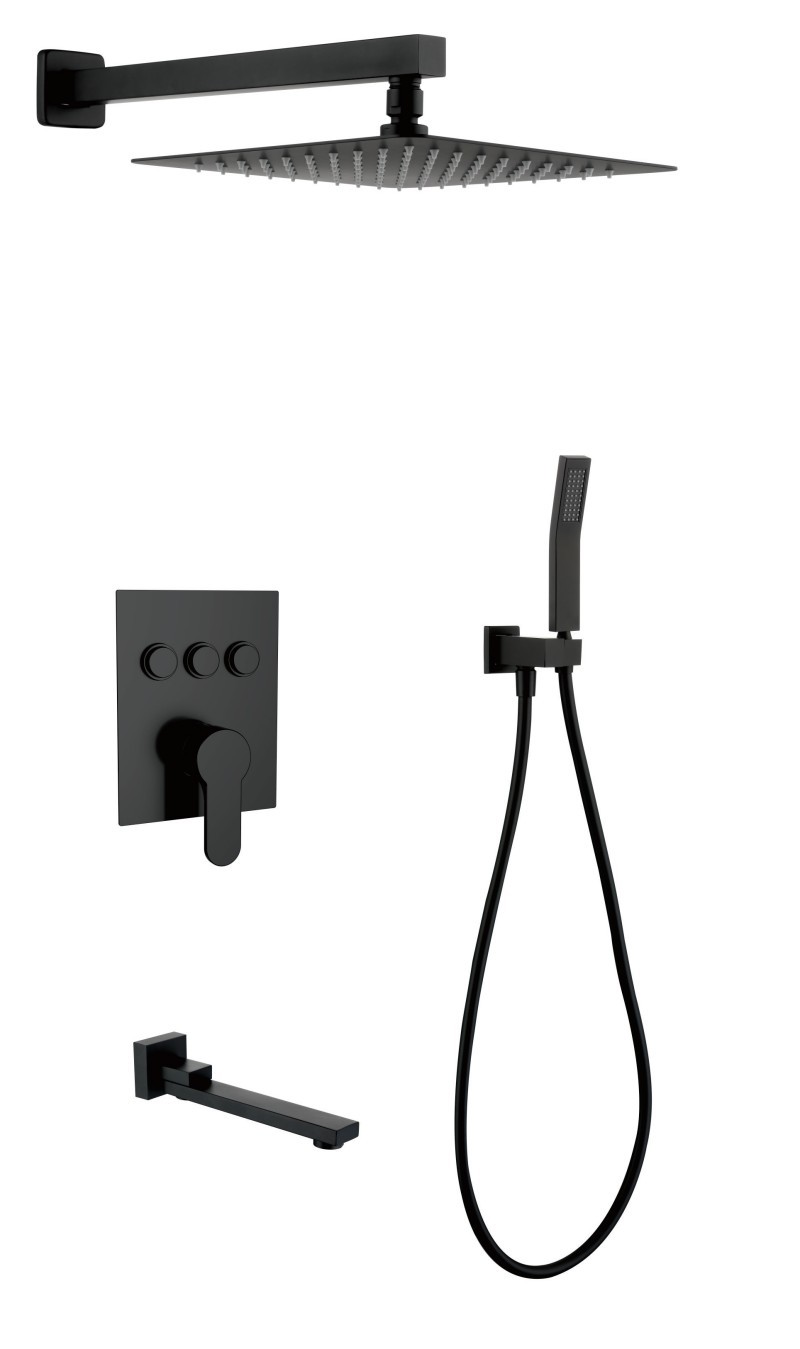

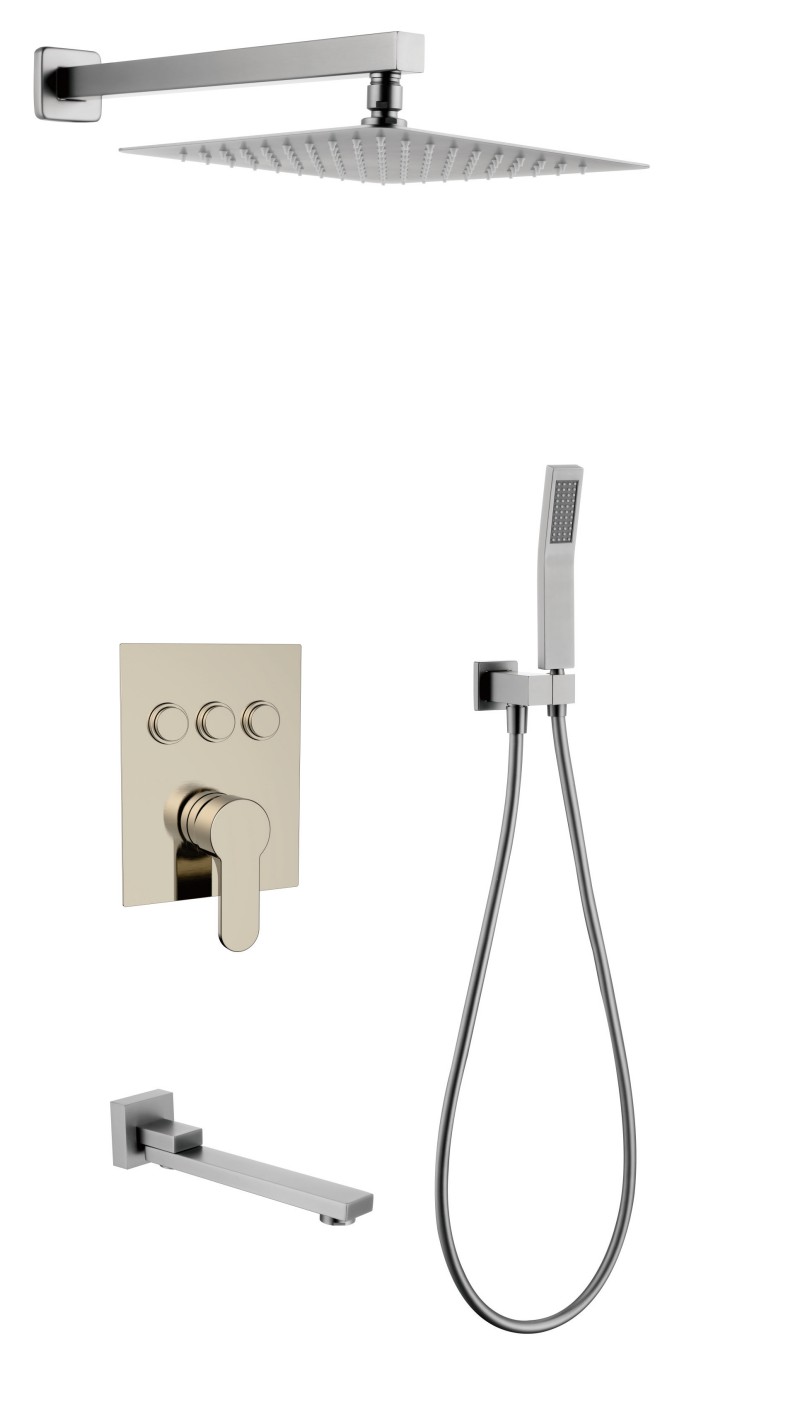

The 8B2029 Series is a wall-mounted shower system built around a pressure-balance valve engineered for stable water delivery in modern bathrooms. It integrates a brass valve body, a large square plate, and a three-function diverter that supports overhead showering, hand shower rinsing, and tub outlet use. The system is designed to maintain stable temperature and pressure even when household water usage fluctuates, offering a controlled and predictable showering experience. The visual design combines sharp geometric surfaces with compact handle proportions, creating a clean and minimalistic look suitable for contemporary interiors.
Shower Balance Valve Parameter
Shower Balance Valve Features

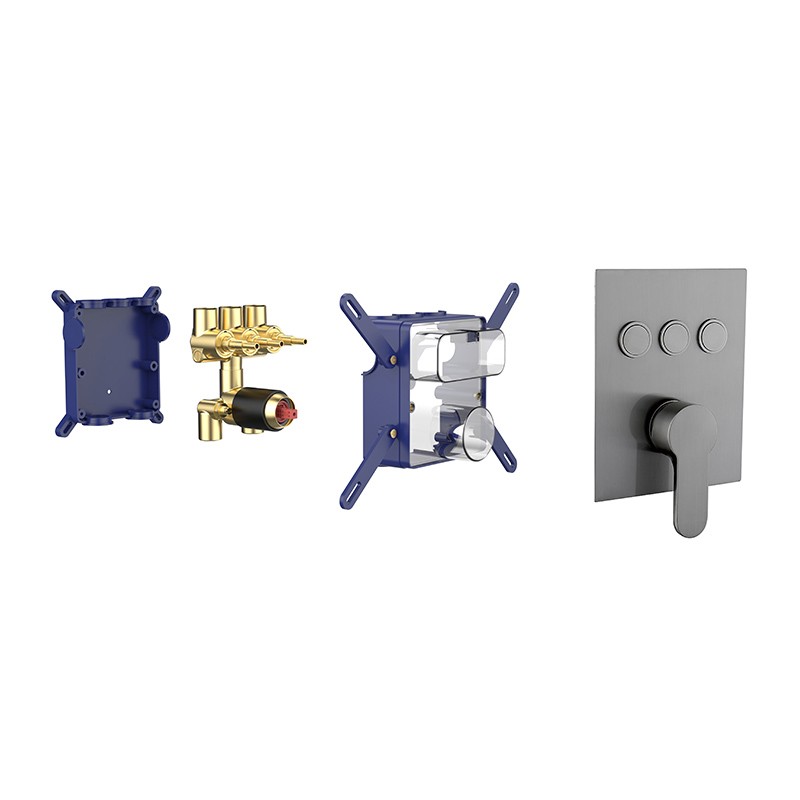

1. Solid Brass Body
The main valve body is cast from high-density brass with a measured copper content above 59 percent, offering long-term structural stability, corrosion resistance, and reliable sealing performance. Material testing shows tensile strength retention above 90 percent after prolonged high-temperature exposure, ensuring durability across varied water conditions.
2. Pressure-Balance Cartridge
The internal cartridge is UPC-certified and maintains supply stability through a constant pressure-adjusting mechanism. Laboratory tests demonstrate outlet temperature fluctuations controlled within ±2.5°C when inlet pressure changes by up to 20 percent, reducing the risk of abrupt temperature shifts during simultaneous household water use.

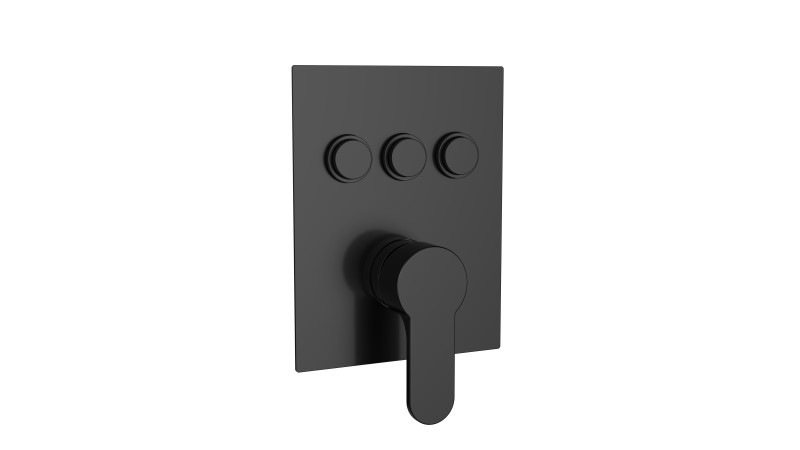

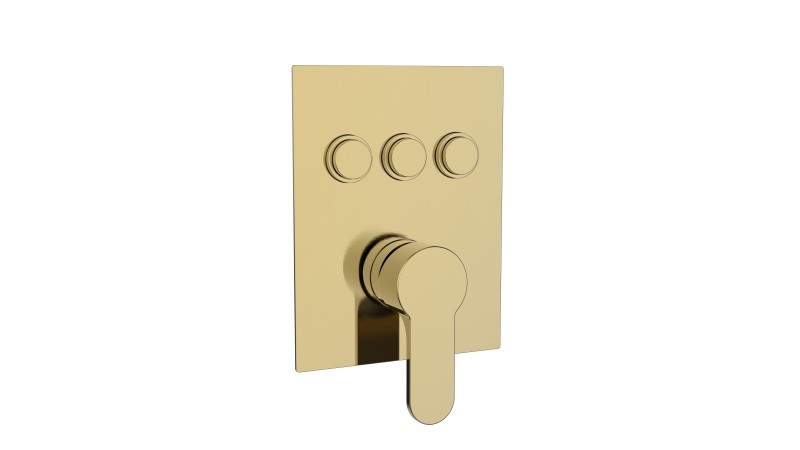

3. NEOPERL Button Diverter
The diverter incorporates precision-engineered switching modules that support three-output functionality. Cycle testing exceeding 80,000 switching operations shows no internal leakage and consistent flow direction, ensuring dependable daily use with low operating force.

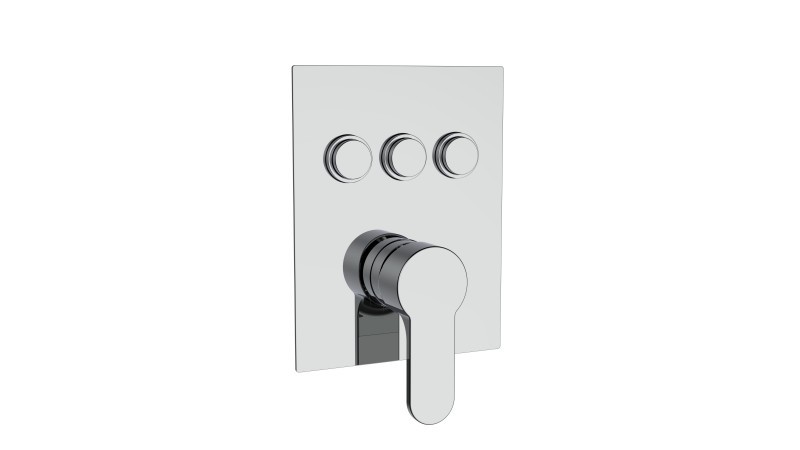

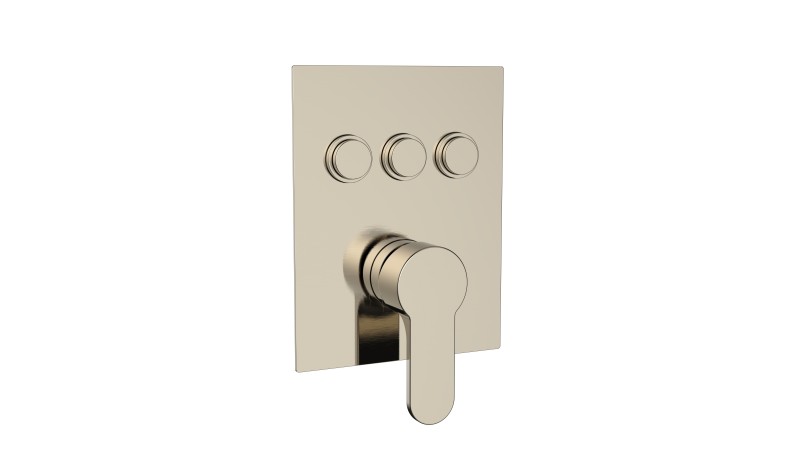

4. Zinc Alloy Handle & Large Panel

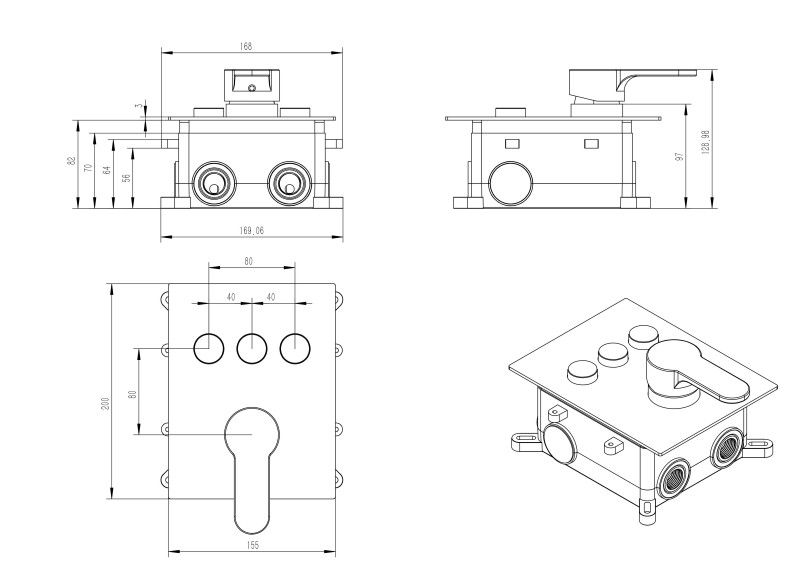

The control handle is compression-formed from zinc alloy with a 220×155 mm front panel that provides enhanced structural rigidity. Surface flatness deviation remains under 0.15 mm after machining, ensuring tight wall contact and improved installation aesthetics without plate deformation.
5. Dual Showerheads with Extended Coverage
The upper assembly includes a 400 mm shower arm paired with a 250 mm square rain showerhead. Flow distribution analysis confirms a coverage radius exceeding 480 mm at 2.0 GPM, offering a comfortable pressure-balanced rain effect. Jet uniformity tests show deviation less than 8 percent across the spray field.
6. Multi-Angle Tub Spout with Locking Outlet
The lower water outlet includes a 180-degree rotation mechanism with a reinforced locking structure. Torque resistance testing confirms stability under repeated 12 N·m rotational loads, preventing wobble or angle drift during operation.

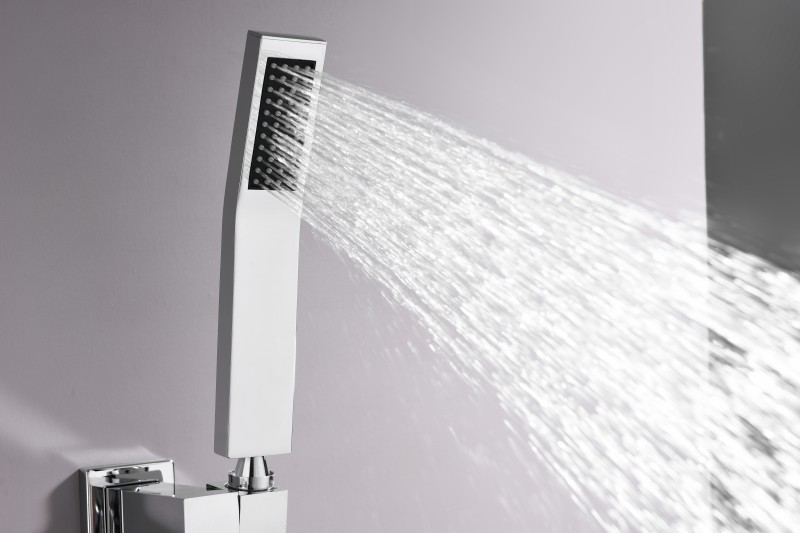

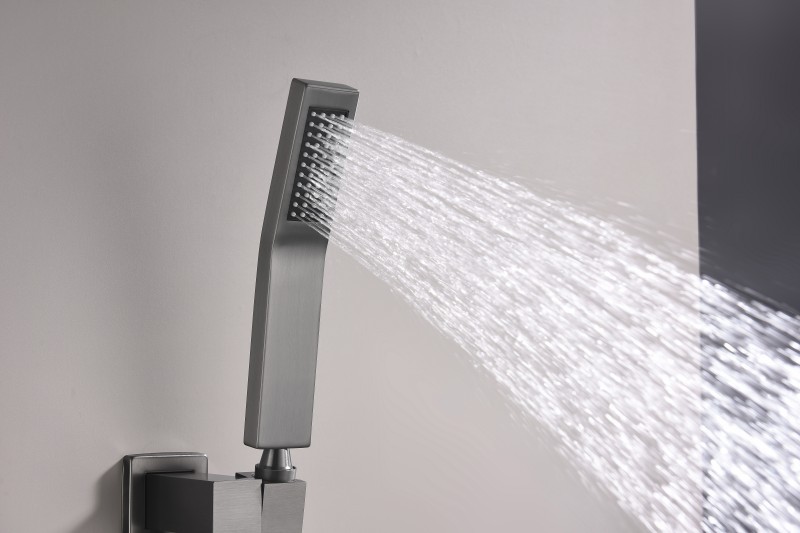

7. Stainless Steel Hand Shower & 1.5 m Hose
The handheld shower uses a stainless-steel tube structure with a measured flow rate of 6.0–8.0 L/min under standard pressure. The 1.5-meter hose withstands tensile loads of over 35 kg without deformation, allowing extended mobility for cleaning or targeted rinsing.
Shower Balance Valve Application
1. Residential Bathroom Renovation
The 8B2029 system provides reliable temperature stability for households with variable water usage patterns. Performance testing shows consistent comfort even when other fixtures operate simultaneously.
2. Hospitality and Hotel Projects
Its pressure-balance performance maintains guest safety across different floor levels. Hotels benefit from reduced maintenance caused by pressure surges and temperature inconsistencies.
3. Multi-Unit Apartments
In shared water supply environments, stability becomes critical. This valve minimizes user complaints by reducing sudden cold or hot shocks commonly caused by pressure drops.

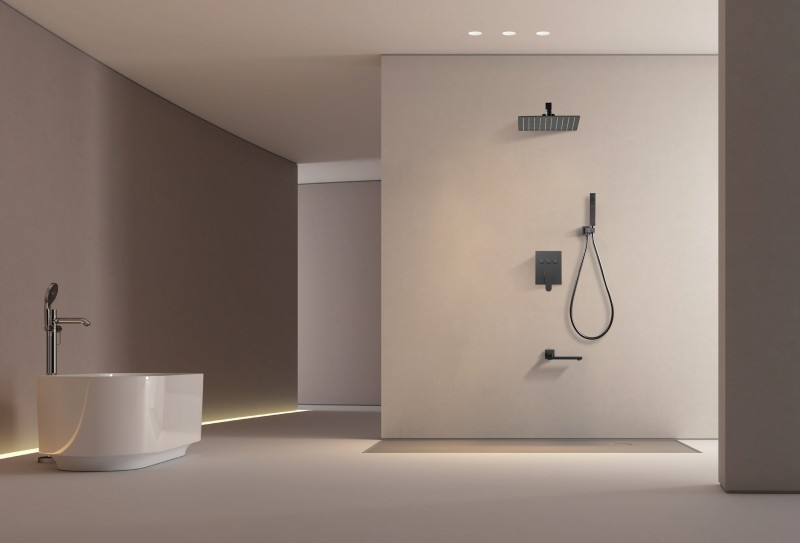

4. Modern Minimalist Interiors
The square panel and clean handle geometry allow easy integration into design-driven bathrooms. The 220×155 mm plate provides broad coverage for installation tolerances, enhancing visual uniformity.
5. Shower-Bath Combination Areas
The 180-degree spout and three-function diverter support both showering and tub filling, making the system suitable for multifunctional spaces without requiring multiple valve setups.
6. Aging-Friendly Home Installations
Smooth switching and low operation force benefit users requiring stable and predictable temperature control, reducing handling difficulty for seniors.
7. Commercial Spa & Wellness Rooms
The system’s high durability, proven through repeated cycle testing, supports continuous daily use in wellness centers where consistent performance and easy cleaning are essential.
More Details about Shower Balance Valve
